PRODUCT SPECIFICATION — SAND CONTENT TEST KIT

Sand Content Test Kit

Excess sand in drilling fluid accelerates wear on pumps, bits, and other circulating equipment, so regular monitoring is essential. The Inmotion Sand Content Test Kit lets field crews quickly separate and measure sand-sized solids from a mud sample: the sample is washed through a fine mesh screen, then flushed into a graduated glass tube where sand content is read directly as a percentage by volume. It is a fast, low-cost way to keep drilling fluid within specification at the rig site or in the lab.

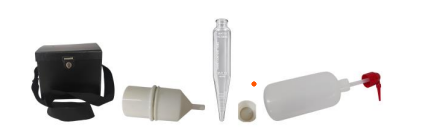

Complete kit with hard carrying case, funnel, graduated sand tube, mesh screen cup, and wash bottle for field and laboratoryuse

FEATURES

✔ Material: Chemical- and corrosion-resistant glass and plastic components built to withstand
repeated field use.
✔ 200-Mesh Screen: Precision-woven 200-mesh (75-micron) screen isolates sand-sized solids for
a clean, accurate sample.
✔ Graduated Tube: Clear 0–20% graduations give a direct, easy-to-read percent-by-volume sand
content result.
✔ Portable Kit: Compact, lightweight components pack into a small field case for rig-site or lab
use.

TECHNICAL SPECIFICATIONS

Inmotion Model Number IM-SC-200
Configuration Funnel, Tube, Screen & Wash Bottle
Measurement Range 0 – 20% sand by volume
Screen Mesh Size 200-mesh (75 micron)
Sample Volume Per API RP 13B-1 Sec. 9 procedure
Compliance Standard API RP 13B-1 Sec. 9

Manufactured to evaluate drilling fluid sand content in line with API RP 13B-1 Sec. 9.

ORDERING INFORMATION

Contact our sales team with your application details for a tailored recommendation and quotation.
Replacement screens, tubes, and funnels are available on request.
