MUD TESTING EQUIPMENT
For years, Inmotion Energy has supplied
precision instruments and drilling tools for
testing drilling fluids, well cements, and
completion fluids.
From our Bangalore facility, we provide
customers across India and the Middle East
with quality products and exceptional
service.
INDUSTRIES WE SERVE
— Onshore & offshore drilling contractors
— National & independent oil companies
— Mud engineering & testing laboratories
— Well completion & workover operations
WHY CHOOSE US
— Rigorous quality control on every unit
— Fast turnaround on spares &
replacements
— Field-tested designs, built for uptime
INMOTION ENERGY (OPC) PRIVATE LIMITED
- 186, 1st Main Road, Vijaya Bank Layout, Bilekahalli, Bangalore, Karnataka – 560076
- Phone: +91 96637 44619
- info@inmotionenergy.in
- imotion.in
PRODUCT SPECIFICATION — 20 ML MUD RETORT KIT

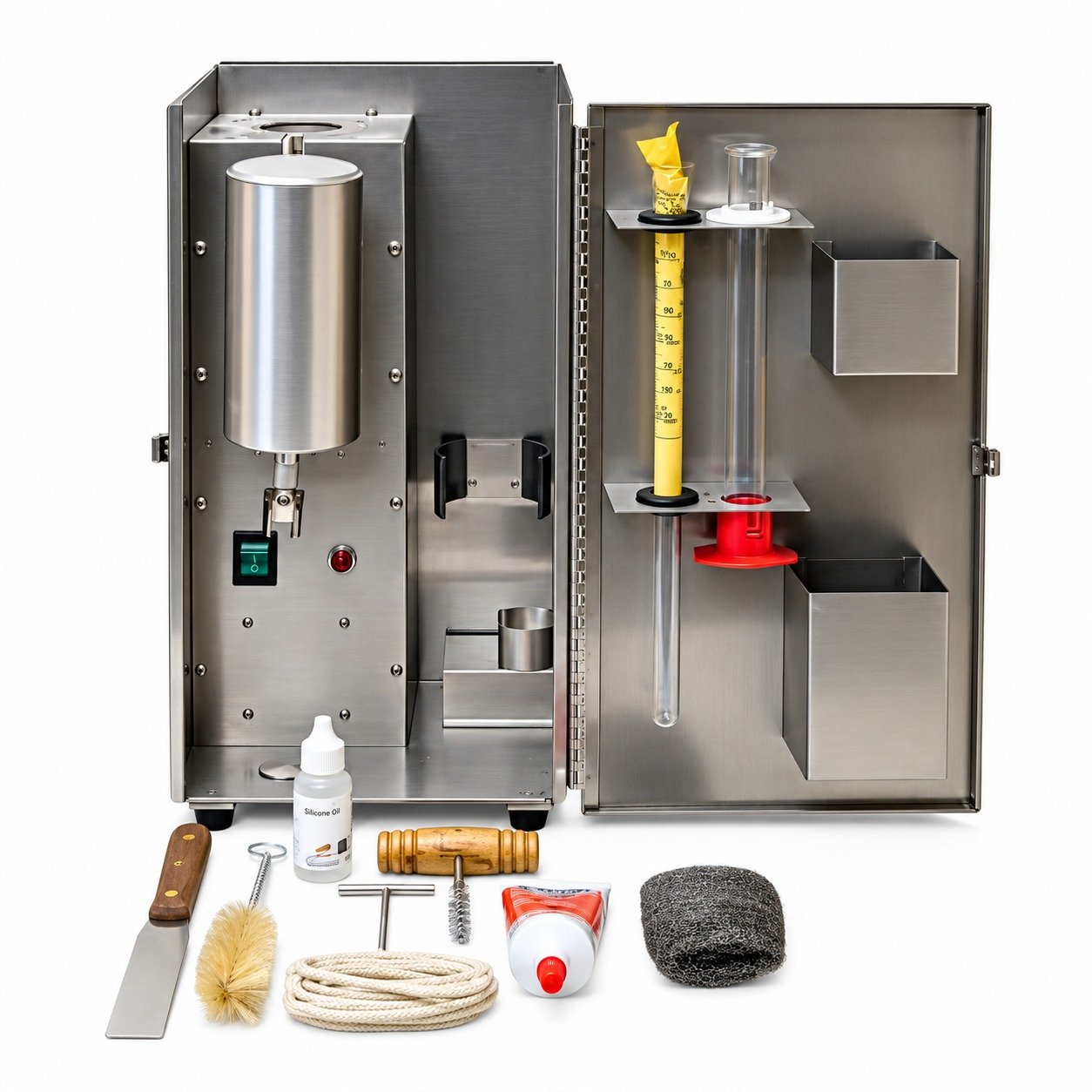

20 ml Mud Retort Kit
Complete kit with carrying case, retort heating unit, condensation assembly, graduated cylinder, and accessories
FEATURES
✔ Digital Temperature Control: drives heating up to 500 °C ± 40 °C, limiting the risk of solidphase boil-out.
✔ External Heating Jacket: heat applied from outside the cup reduces scorching and
parching.
✔ Robust Recovery System: sealed distillation cup and condensation body deliver stable,
consistent liquid recovery for accurate day-to-day testing.
✔ Two Voltage Builds Available: AC220V 50Hz (standard) or AC120V 60Hz (USA), ±10%.
✔ Durable Construction: corrosion-resistant stainless steel distillation cup, condensation
body, and case are built for rig-site and laboratory conditions.
TECHNICAL SPECIFICATIONS
| Inmotion Model Number | IM-RT-20ML |
| Configuration | Retort Unit, Distillation Cup, Condensation Body & Graduated Cylinder |
| Sample Volume | 20 ml |
| Maximum Temperature | 500 °C ± 40 °C |
| Power Supply | AC220V 50Hz (standard) or AC120V 60Hz (USA), ±10% |
| Compliance Standard | API RP 13B-2 (Invert Muds) |
Manufactured to evaluate drilling fluid oil, water, and solids content in line with API RP 13B-2.
